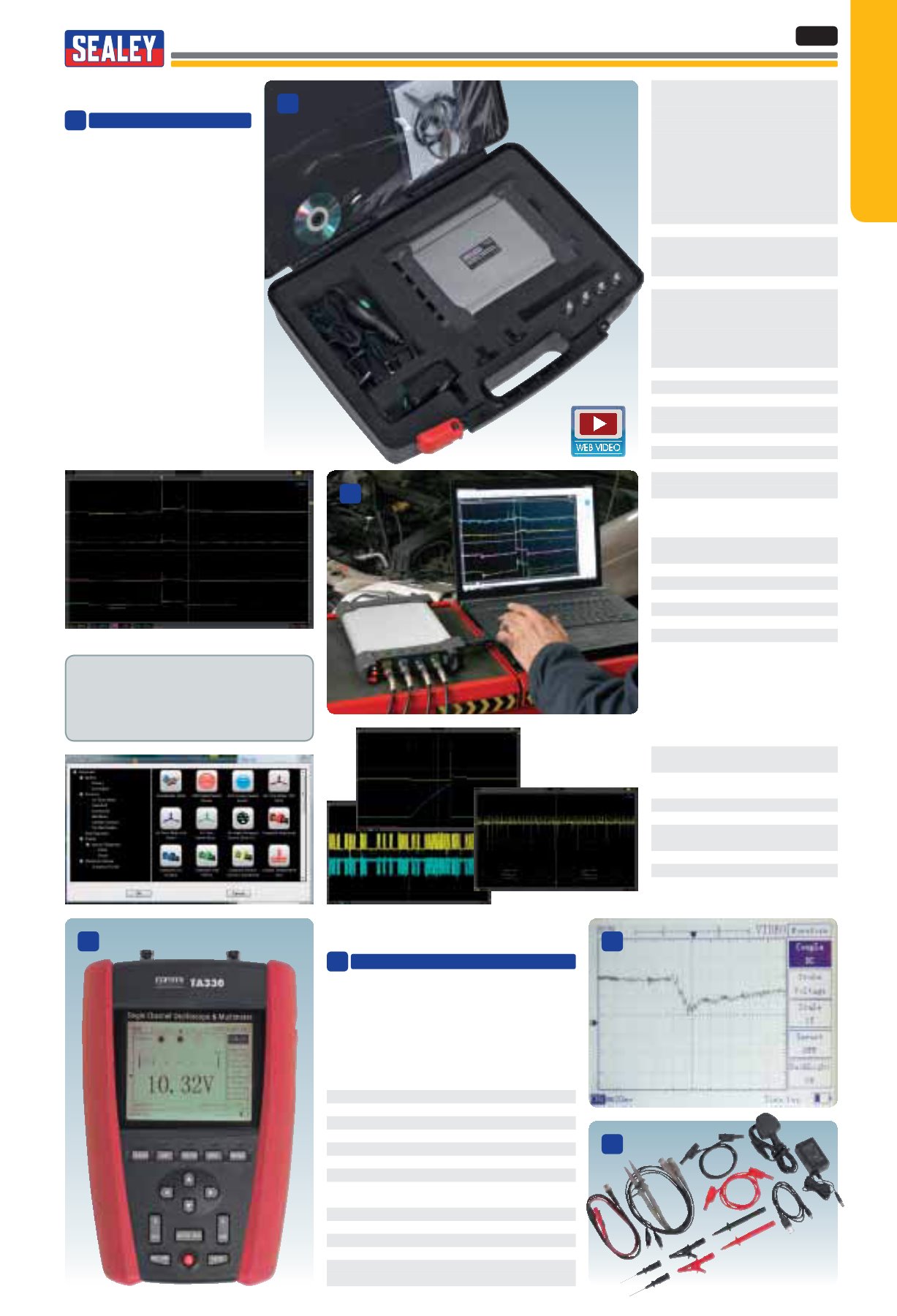

Diagnostic Tools
393
Model No.
TA4000
A
A
Automotive Diagnostic
Oscilloscope 4 Channel
One of the most competitively priced,
PC-based scopes around and suitable
for professional applications. High
sample rate, multiple memory function
and 4-channel display make this unit
ideal for in-depth analysis of a variety of
automotive sensors and components,
and can be used with any compatible
lap-top or PC. The scope also features
a comprehensive collection of standard
automotive diagnostic procedures,
turning an otherwise complex process
into a click of a button. The system
is loaded with specimen waveforms
allowing the operator to compare
actual results with those expected.
The 4-channel function allows
multiple components to be compared
simultaneously. Can be connected
using a LAN cable (supplied) to any
PC running the appropriate software
version. The scope is supplied with a
wide selection of automotive type test
leads, connectors and probes. Supplied
in carry-case.
B
Hand-Held Automotive Single Channel
Oscilloscope & Multimeter
Model No.
TA330
B
Simple to use oscilloscope that allows observation of
constantly varying signals from vehicle components
and sensors. With a bandwidth of 20MHz the unit
is suitable for detecting CAN signals on modern
vehicles. Functions include date hold, record,
auto-ranging and USB interface for downloading data
to PC. This versatile unit also has a built in multimeter
with large digit display and bar graph. Supplied with
3-pin UK and 2-pin European charger leads.
Display:
320 x 240 pixel with LED Backlight
Bandwidth:
20MHz
Sample Rate:
Maximum 80MSa/S
Input Impedance:
1M
:
Maximum Input:
600V
Memory Capacity:
6 Waveforms
Trigger Mode:
Auto, Normal, Single
Multimeter Modes:
Voltage DC & AC, Current DC
& AC, Resistance, Capacitance, Continuity, Diode
Battery:
3.7V Lithium Polymer
Operating Time:
3hr with Backlight
Size:
211 x 140 x 55mm
Weight:
700g
PC Compatibility:
Windows 98, ME, 2000, XP,
Vista, WIN7
Accessories (supplied):
Power
Supply Lead, Power Supply Plug
Adaptors x 4, Vehicle Accessory Socket
Power Lead, USB Cable, Attenuators
x 4, Calibration Probe, Crocodile Clips;
4 x Red, 4 x Black, Standard Probes;
4 x Red, 4 x Black, Back Probes x 5,
HT Coil On Plug Extension Leads x 4,
HT Couplers x 4, Standard Leads x 4,
Earth Cables x 4, Software Disc (Driver
& Instructions)
Input:
Maximum Sample Rate:
200MS/s (Single Channel)
100MS/s (Dual Channels)
Bandwidth:
60MHz (-3dB)
Gain Range:
10mV - 5V/div @ x1 Probe
(10mV, 20mV, 50mV, 100mV, 200mV,
500mV, 1V, 2V, 5V/div 1-2-5 sequence)
100mV - 50V/div @ x10 Probe
1V - 500V/div @ x100 Probe
10V - 5KV/div @ x1000 Probe
Coupling:
AC, DC, GND
Impedance:
1M
:
DC Accuracy:
+/-3%
Input Protection:
35Vpk (DC + Peak
AC < 10 kHz, without external attenuation)
Display Mode:
Y-T, X-Y
Predicted Waveforms:
81
Timebase:
Timebase Range:
5ns/div - 1000s/div
(1-2-5 sequence)
Acquisition Mode:
Realtime Sampling: 5ns/div - 200ms/div
Roll Mode: 500ms/div - 1000s/div
Buffer Size:
10K - 16M Points
(Single Channel)
Trigger:
Type:
Edge Trigger, Pulse Trigger
Mode:
Auto, Normal, Single
Autoset:
Trigger Level:
+/-4 Divisions
Math:
Measurements:
Vpp, Vmax, Vmin,
Vmean, Vrms, Vamp, Vtop, Vbase,
Vmid, Positive Overshoot, Negative
Overshoot, Cycle Mean, Cycle RMS,
Period, Frequency, Positive Pulse
Width, Negative Pulse Width, Rise
Time (10%-90%), Fall Time (10%-90%),
Positive Duty Cycle, Negative Duty Cycle
Math:
Addition, Subtraction,
Multiplication, FFT
FFT:
Rectangular, Hanning, Hamming,
Blackman Window
Physical:
Interface:
USB2.0 (USB1.1 compatible)
Operating System:
Window NT,
2000, XP, Vista, Win7
Power:
8.5V DC
Size (L x W x D):
224 x 168 x 37mm
Visit
for
FREE
software
Download and
Demonstration
Video. Try the
Software
before you
buy.
A
Read four signals at the same time.
Huge range of pre-defined test parameters
allowing you to quickly set up the scope to read
Primary Ignition, Secondary Ignition,
Camshaft/Crankshaft Position, Distributor,
Lambda, Throttle Position, CAN-Bus, Injectors
and Charging System.
